New Original 10.4 Inch KOE LCD Display 640*480 FSTN LMG7550XUFC For Industrial Machine

Brand Name : KOE

Model Number : LMG7550XUFC

Certification : ISO9001

Place of Origin : Japan

MOQ : 1 Piece

Payment Terms : T/T, Western Union, Paypal, MoneyGram

Supply Ability : 100 PCS PER DAY

Delivery Time : 2-3 Working Days After Order Confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Type : FSTN-LCD , LCM

Brightness : 100 cd/m2 ( Typ.)

Display Colors : Monochrome

Contrast Ratio : 18:1 ( Typ.)

Lamp Type : 1 Pcs CCFL Without Driver

Signal Interface : Parallel Data ( 4- bit ), 15 pins

Application : All Industrial Application Panel

Response Time : 160/110 ( Typ. )(Tr/Td)

Resolution : 640*480, VGA

Outline : 164*183*9 mm

Contact Now

Original 10.4 Inch 640*480 FSTN LCD Panel LMG7550XUFC Digital LCD Display

Product Description:

Panel Model : LMG7550XUFC
Brand : KOE
Panel Size: 10.4 inch
Resolution : 640*480
Panel Type : FSTN-LCD Panel
Composition : Panel
Mode : STN, Black/White (Negative), Transmissive
Display Color :Monochrome
Lamp Type :Parallel Data (4-bit)
MOQ : 1pcs
Application : Industrial Application

Techinical Specifications:

GENERAL INFORMATION:	Product Name:	TFT LCD screen
	Brand Name:	KOE
	Item No.:	LMG7550XUFC
SPECIFICATIONS:	* Screen size: 10.4 inch
	* Ratio of LCD screen: 4 : 3
	* Resolution: 640(RGB)×480 (XGA)
	* Bightness: 100 cd/m2 (Typ.)
	* View angle: 80/80/70/60 (Typ.)(CR≥10)(°)
	* Contrast Ratio: 18:1 (Typ.)
	* Dimension: 264×183 mm
	* Outline Depth: 8.5 (Max.) mm
	* Pixel Density: 76 PPI
	* Active Area (mm): 211.17×158.37 mm
	* Pixel Pitch (mm): 0.330×0.330 mm
	* Pixel arrangement: RGB Vertical stripe
	* Number of Colors: 262K/16.2M
	* Support Color: 6-bit + FRC
	* Response Time (ms) : 160/110 (Typ.)(Tr/Td)
	* Interface: Parallel Data (1 ch, 4-bit), 15 pins
	* Pixel Configuration : Rectangle
	* Form Factor: Flat Rectangle Display
	* Dot Pitch: 0.33.0.330 mm ( HV)
	* Working temperature: 0°C - 45°C
	* Storage temperature: -25°C - 60°C
	* Screen Type: Liquid Crystal Display with TFT Active Matrix with 2 CCFL backlight
	* Installation: shelf/wall-mounted or to be installed on desktop
CERTIFICATES:	ISO9001

More Info for N&S Electronics:

>>Quality ensurance

100% original and brand new, no fake panels exists !

12 months of warranty !

You can enjoy the real panels directly from original factory;

>>Packing ensurance

Original package and Seal for batch orders, all the products are

We have professional support team to provide effective service, we are young and full of passion! in original package from original factory directly, and all the packages have labels and serial number!

>>Delivery ensurance

We have international logistic center in HK, Shanghai and Shenzhen, so we can arrange fastest and most convenient delivery for you !

>>After-Sale service

We have professional support team to provide effective service, we are young and full of passion!

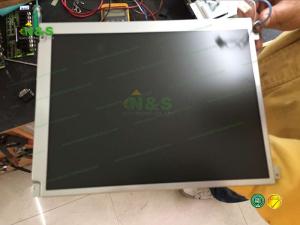

Picture Show for KOE LMG7550XUFC:
