Sharp LQ035Q3DG01 3.5 inch lcd panel display Antiglare Landscape type
What Is Our Advantages
1. We are the professional supplier of the industrial LCD Screen Replacements,located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. As a result, our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
We can do for you
1. Provide excellent LCD screen replacements with competitive price.
2. Safe, quick and efficient supply chain.
3. Plenty of stocks. Branded ones include LCD Screen panels for LG, Samsung, Sharp, BOE, Chimei and so on.
4. Your problems will be replied within 24 hours.
SHARP LQ043T1DG01 General Features
| Panel Brand : | SHARP |
| Panel Model : | LQ035Q3DG01 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 3.5 inch |
| Resolution : | 320(RGB)×240 , QVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 70.56×52.92 mm |
| Outline : | 76.9×63.9 mm |
| Surface : | Antiglare |
| Brightness : | 450 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 8/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/60/65 (Typ.)(CR≥10) (L/R/U/D) |
SHARP LQ043T1DG01 Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 450 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 8/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/60/65 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.340 |

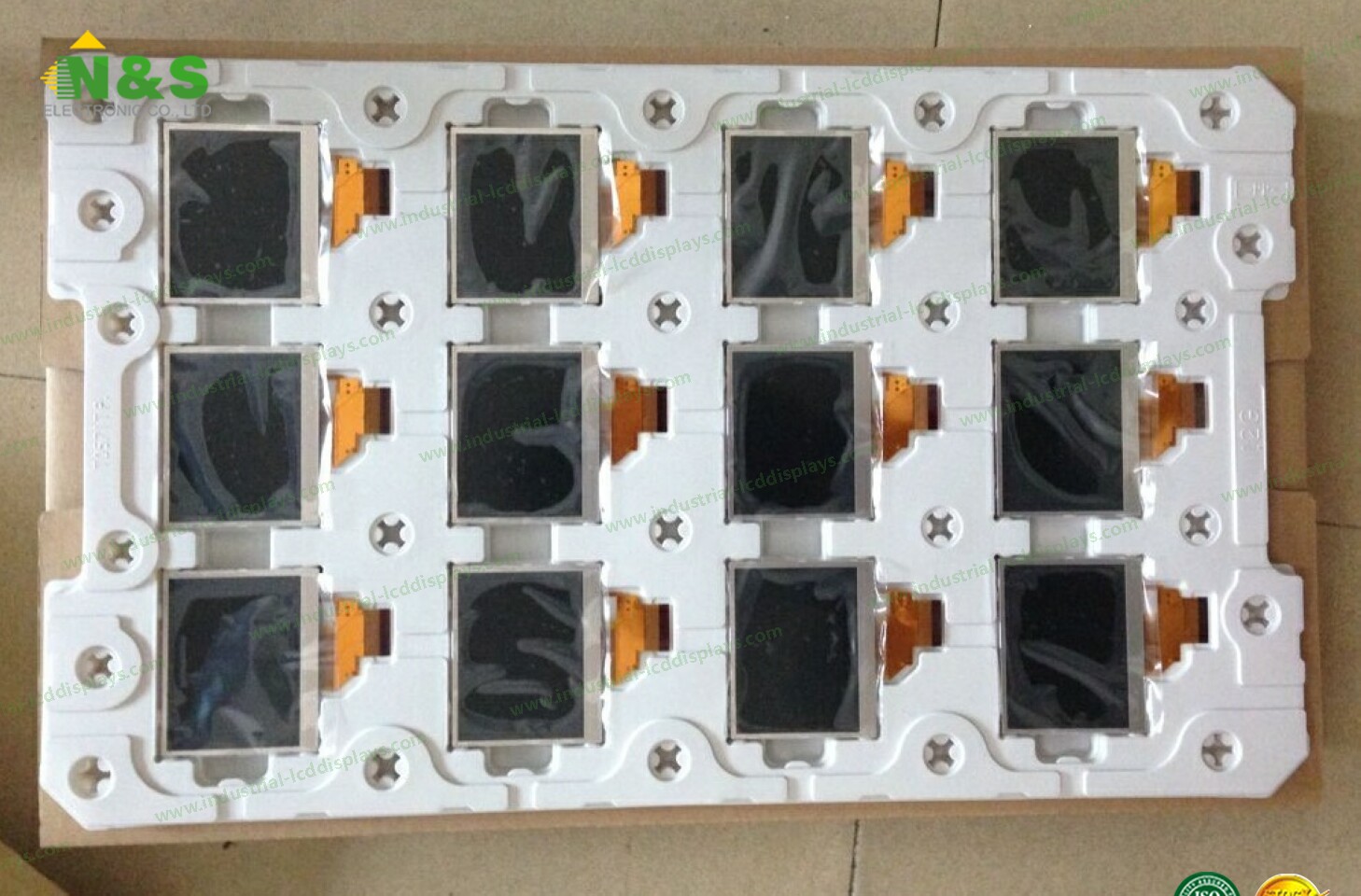

Details Pictures for Sharp LCD Panel
