Name: 60Hz Antiglare Industrial LCD Displays Hard coating AA104XD12 Mitsubishi
Brand: Mitsubishi LCD Display
Price: 1 USD

Brand Name : Mitsubishi LCD Display

Model Number : AA104XD12

Certification : ISO9001

Place of Origin : Japan

MOQ : 1 Piece

Payment Terms : T/T, Paypal, Western Union, MoneyGram

Supply Ability : 100 PCS / DAY

Delivery Time : 2-3 working days after payment confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Resolution : 1024(RGB)×768 , XGA

Contrast Ratio : 700:1 (Typ.)

Display Colors : 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 40%

Panel Model : AA104XD12

Panel Size : 10.4 inch

Panel Brand : Mitsubishi

Contact Now

60Hz Antiglare Industrial LCD Displays Hard coating AA104XD12 Mitsubishi

Key Specifications:

Panel Brand :	Mitsubishi
Panel Model :	AA104XD12 1 Compatible model
Panel Type :	a-Si TFT-LCD , Panel
Panel Size :	10.4 inch
Resolution :	1024(RGB)×768 , XGA
Display Mode :	TN, Normally White, Transmissive
Active Area :	210.4×157.8 mm
Outline :	230×180.2×11 mm
Surface :	Antiglare, Hard coating (3H)
Brightness :	1000 cd/m² (Typ.)
Contrast Ratio :	700:1 (Typ.)

Features:

1. Three year standard warranty

2.500:1 contrast ratio, and 250-nit brightness (LCD panel)
3. High quality panel with 140° x 130° viewing angle

4. Fully RoHS compliant
5. Multilingual on-screen display (OSD)

6. Optional front mount and rack mount bezels
7. LED Backlight

8. Mounting options including rear-mount and VESA mount
9. Resistive Touchscreen Technology

Mitsubishi AA104XD12 Mechanical Features:

Panel Size :	10.4 inch
Dot Resolution :	1024(RGB)×768 (XGA)
Pixel Configuration :	RGB Vertical Stripe
Pixel Density :	123 PPI
Aspect Ratio :	4:3 (H:V)
Form Factor :	Flat Rectangle Display
Dot Pitch :	0.0685×0.2055 mm (H×V)
Pixel Pitch :	0.2055×0.2055 mm (H×V)
Weight :	520g (Typ.)
Surface :	Antiglare, Hard coating (3H)
Active Area :	210.4×157.8 mm (H×V)
Bezel Area :	215.4×161.8 mm (H×V)
Outline Dimension :	230×180.2 mm (H×V)
Outline Depth :	10.5±0.5 mm
Holes & Brackets :	Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait :	Landscape type
Touch Panel :	Without

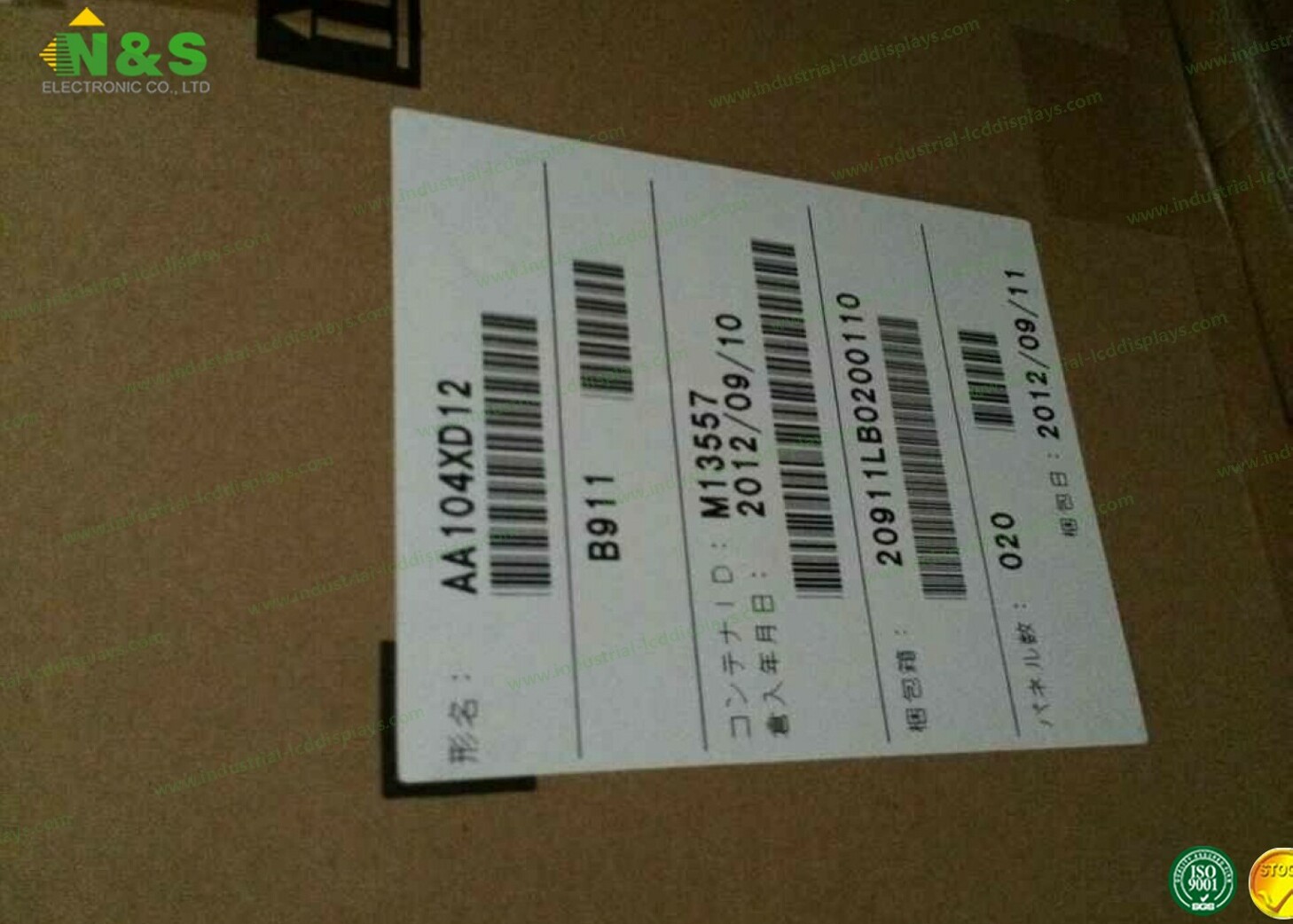

Pictures of Mitsubishi AA104XD12 Display:

60Hz Antiglare Industrial LCD Displays Hard coating AA104XD12 Mitsubishi
