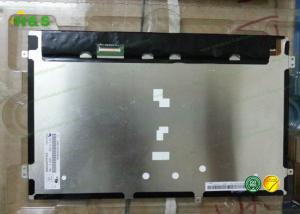

HannStar HSD070IDW1 - A21 Industrial LCD Displays 7.0 inch 153.6×86.64 mm Active Area
HannStar HSD070IDW1-A21 General Features
| Panel Brand : |
HannStar |
| Panel Model : |
HSD070IDW1-A21 |
| Panel Type : |
a-Si TFT-LCD , Panel |
| Panel Size : |
7.0 inch |
| Resolution : |
800(RGB)×480 , WVGA |
| Display Mode : |
TN, Normally White, Transmissive |
| Active Area : |
153.6×86.64 mm |
| Outline : |
165×104×5.4 mm |
| Surface : |
Antiglare, Hard coating (3H) |
| Brightness : |
200 cd/m² (Typ.) |
| Contrast Ratio : |
500:1 (Typ.) |
| Display Colors : |
262K/16.2M (6-bit / 6-bit + FRC) |
| Response Time : |
5/20 (Typ.)(Tr/Td) |
| Viewing Angle : |
70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : |
3S7P WLED |
| Signal Interface : |
Parallel RGB (1 ch, 6/8-bit) , 60 pins |
| Input Voltage : |
3.0/10.0/15/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
Our Advantage
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: PayPal, Western Union and T/T are preferred, so just tell us which is easier to you. Then we will send you our bank details. Or your requirements.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, Trade Manager or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 7~10 working days. For bulk orders, usually 15~20 working days and depends on your design.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship samples. For bulk orders, we support shipping by air or by sea.
Q6: Can you customize according to our designs and put our logo on the products?
A6: Yes, we support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM is welcome.
HannStar HSD070IDW1-A21 General Features
| Panel Brand : |
BOE |
| Panel Model : |
BP070WS1-500 |
| Panel Type : |
a-Si TFT-LCD , Panel |
| Panel Size : |
7.0 inch |
| Resolution : |
1024(RGB)×600 , WSVGA |
| Display Mode : |
ADS, Normally Black, Transmissive |
| Active Area : |
153.6×90 mm |
| Outline : |
164.05×100.86 mm |
| Surface : |
Hard coating (3H) |
| Brightness : |
400 cd/m² (Typ.) |
| Contrast Ratio : |
900:1 (Typ.) |
| Display Colors : |
16.7M (6-bit + Hi-FRC) , CIE1931 50% |
| Response Time : |
30 (Typ.)(Tr+Td) |
| Viewing Angle : |
80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : |
60Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit] |
| Lamp Type : |
5S4P WLED [8S6P: 8 Serial, 6 Parallel] Without Driver |
| Signal Interface : |
LVDS (1 ch, 8-bit) , 31 pins |
| Input Voltage : |
3.7V (Typ.) |
HannStar HSD070IDW1-A21 Mechanical Features
| Panel Size : |
7.0 inch |
| Dot Resolution : |
800(RGB)×480 (WVGA) |
| Pixel Configuration : |
RGB Vertical Stripe |
| Pixel Density : |
134 PPI |
| Aspect Ratio : |
16:9 (H:V) |
| Form Factor : |
Flat Rectangle Display |
| Dot Pitch : |
0.064×0.1805 mm (H×V) |
| Pixel Pitch : |
0.192×0.1805 mm (H×V) |
| Weight : |
130g (Typ.) |
| Surface : |
Antiglare, Hard coating (3H) |
| Active Area : |
153.6×86.64 mm (H×V) |
| Bezel Area : |
156.0×89.04 mm (H×V) |
| Outline Dimension : |
165×104 mm (H×V) |
| Outline Depth : |
5.1±0.3 mm |
| Holes & Brackets : |
Without |
| Landscape or Portrait : |
Landscape type |
Below are our other LCD panels stock for your easy reference:
| Panel Model |
Brand |
Size |
Resolution |
| HSD043B8W2-C01 |
HannStar |
4.3" |
480×800 |
| HSD070IDW3-A00-0299 |
HannStar |
7.0" |
800×480 |
| HSD050F9W1-A00 |
HannStar |
5.0" |
480×272 |
| HSD050FDW1-A00 |
HannStar |
5.0" |
800×480 |
| HSD043F9W1-A00 |
HannStar |
4.3" |
480×272 |
| HSD050B8W4-A00 |
HannStar |
5.0" |
480×854 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Packing & Delivery for our LCD Screen Panel Replacements:
1. Anti-static Bag Packing.
2. Anti-Shock Bubble Bag Packing
3. Foam and Hard Carton Packing
4. Picked up by forward and delivered by express services.
