LQ121S1DG43 Sharp LCD Panel 12.1 inch LCM 800×600 370 450:1 262K CCFL TTL

Name: LQ121S1DG43 Sharp LCD Panel 121 inch LCM 800600 370 4501 262K CCFL TTL
Brand: SHARP
Price: 1 USD

Brand Name : SHARP

Model Number : LQ121S1DG43

Certification : ISO9001

Place of Origin : KOREA

MOQ : 1 Piece

Payment Terms : T/T, Paypal, Western Union, MoneyGram

Supply Ability : 100 PCS / DAY

Delivery Time : 2-3 working days after payment confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Size : 12.1 inch

Resolution : 800(RGB)×600 , SVGA

Display Mode : TN, Normally White, Transmissive

Signal Interface : Parallel RGB (1 ch, 6-bit) , 41 pins

Contact Now

LQ121S1DG43 Sharp LCD Panel 12.1 inch LCM 800×600 370 450:1 262K CCFL TTL

Products Information:

Panel Size :	12.1 inch
Dot Resolution :	800(RGB)×600 (SVGA)
Pixel Configuration :	RGB Vertical Stripe
Pixel Density :	82 PPI
Aspect Ratio :	4:3 (H:V)
Form Factor :	Flat Rectangle Display
Dot Pitch :	0.1025×0.3075 mm (H×V)
Pixel Pitch :	0.3075×0.3075 mm (H×V)
Weight :	660g (Max.)
Surface :	Antiglare, Hard coating (3H)
Active Area :	246×184.5 mm (H×V)
Bezel Area :	249.0×187.5 mm (H×V)
Outline Dimension :	276×209 mm (H×V)
Outline Depth :	11.0 (Max.) mm
Holes & Brackets :	Face mounting holes (2- 3.4, 2-R1.7) on left, right bezel
Landscape or Portrait :	Landscape type
Touch Panel :	Without

Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!

Display Mode :	TN, Normally White, Transmissive
Brightness :	370 cd/m² (Typ.)
Contrast Ratio :	450 : 1 (Typ.) (Transmissive)
Display Color :	262K (6-bit)
Response Time :	10/25 (Typ.)(Tr/Td)
Viewing Angle :	70/70/50/60 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	6 o'clock
White color Chromaticity :	Wx:0.313; Wy:0.329
White Variation :	1.25 (Max.)(5 points)
Sunlight Readable :	N

FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.

Below are our other LCD panels stock for your easy reference:

Panel Model	Brand	Size	Resolution
LQ055T3SX04	SHARP	5.5"	1080×1920
LQ079L1SX06	SHARP	7.9"	1536×2048
LQ079L1SX04	SHARP	7.9"	1536×2048
LQ133M1JW08	SHARP	13.3"	1920×1080
LQ156D1JX02	SHARP	15.6"	3840×2160

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

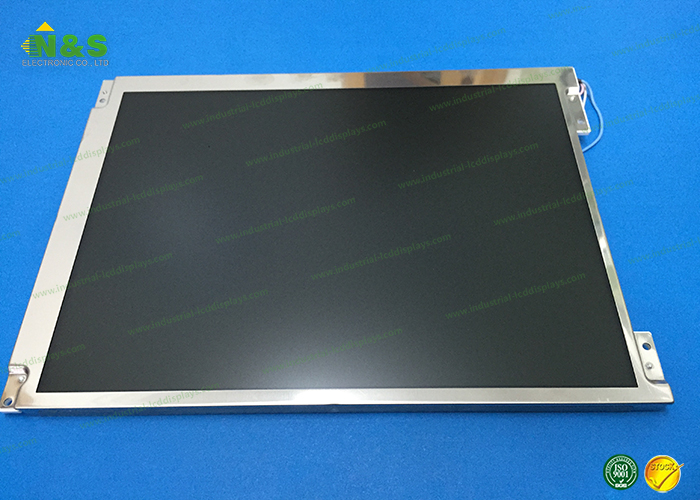

LQ121S1DG43 Picture
