FG090052DSSWAGT1 Industrial LCD Data Image 9.0 inch LCM 800×480 200 500:1 16.7M WLED TTL

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

FG090052DSSWAGT1 Industrial LCD Data Image 9.0 inch LCM 800×480 200 500:1 16.7M WLED TTL

Brand Name : Data Image

Model Number : FG090052DSSWAGT1

Certification : ISO9001

Place of Origin : KOREA

MOQ : 1 Piece

Payment Terms : T/T, Paypal, Western Union, MoneyGram

Supply Ability : 100 PCS / DAY

Delivery Time : 2-3 working days after payment confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Size : 8.0 inch

Resolution : 800(RGB)×480 , WVGA

Display Mode : TN, Normally White, Transmissive

Signal Interface : Parallel RGB (1 ch, 8-bit) , 50 pins

Contact Now

FG090052DSSWAGT1 Industrial LCD Data Image 9.0 inch LCM 800×480 200 500:1 16.7M WLED TTL

Products Information:

Panel Size :9.0 inch
Dot Resolution :800(RGB)×480 (WVGA)
Pixel Configuration :RGB Vertical Stripe
Pixel Density :104 PPI
Aspect Ratio :16:9 (H:V)
Form Factor :Flat Rectangle Display
Dot Pitch :0.0825×0.2327 mm (H×V)
Pixel Pitch :0.2475×0.2327 mm (H×V)
Weight :TBD
Active Area :198×111.696 mm (H×V)
Outline Dimension :211.1×126.5 mm (H×V)
Outline Depth :7.46±0.3 mm
Holes & Brackets :Without
Landscape or Portrait :Landscape type
Touch Panel :Embeded (4-wire Resistive)

Display Mode :
TN, Normally White, Transmissive
Brightness :200 cd/m² (Typ.)
Contrast Ratio :500 : 1 (Typ.) (Transmissive)
Display Color :16.7M (8-bit)
Response Time :10/15 (Typ.)(Tr/Td)
Viewing Angle :70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :4:30 o'clock
White color Chromaticity :Wx:0.310; Wy:0.330
White Variation :
1.43 (Max.)(9 points)
Sunlight Readable :N


Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.

Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel ModelBrandSizeResolution
ED133TT1E Ink13.3"2200×1650
ED060SD1E Ink6.0"600×800
ED060SCTE Ink6.0"600×800
ET043OC1E Ink4.4"360×640
EN133UT1E Ink13.3"1600×1200
ED047TC1E Ink4.7"540×960
ED133UT1E Ink13.3"1600×1200


Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.

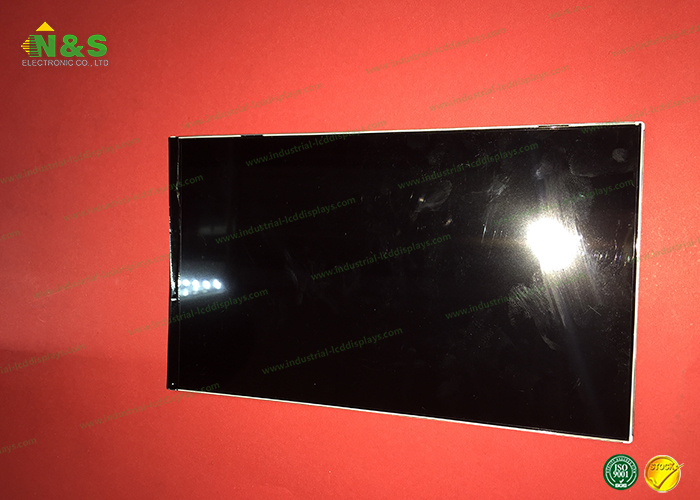

FG090052DSSWAGT1 Picture

FG090052DSSWAGT1 Industrial LCD Data Image 9.0 inch LCM 800×480 200 500:1 16.7M WLED TTL
