4.3 inch 105.567.25.35 mm Sharp LQ043T1DG03B LCD Screen

Name: 43 inch 1055672535 mm Sharp LQ043T1DG03B LCD Screen
Brand: Sharp LCD Panel
Price: 1 USD

Brand Name : Sharp LCD Panel

Model Number : LQ043T1DG03B

Certification : ISO9001

Place of Origin : Japan,Korea

MOQ : 1 piece

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 100 PCS PER DAY

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Model : LQ043T1DG03B

Panel Type : a-Si TFT-LCD , Panel

Panel Size : 4.3 inch

Outline : 105.5×67.2×5.35 mm

Surface : Antiglare, Hard coating (2H)

Brightness : 500 cd/m² (Typ.)

Viewing Angle : 45/45/20/55 (Typ.)(CR≥10) (L/R/U/D)

Frequency : 60Hz

Contact Now

4.3 inch 105.5*67.2*5.35 mm Sharp LQ043T1DG03B LCD Screen

Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-yearexperience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.

FAQ
1. Q: Where can I get the price?
A:,A:,We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What is your terms of payment?
A: We accept T/T, Western Union, MoneyGram, Paypal.

SHARP LQ043T1DG03B General Features

Panel Brand :	SHARP
Panel Model :	LQ043T1DG03B
Panel Type :	a-Si TFT-LCD , Panel
Panel Size :	4.3 inch
Resolution :	480(RGB)×272 , WQVGA
Display Mode :	TN, Normally White, Transmissive
Active Area :	95.04×53.856 mm
Outline :	105.5×67.2×5.35 mm
Surface :	Antiglare, Hard coating (2H)
Brightness :	500 cd/m² (Typ.)
Contrast Ratio :	300:1 (Typ.)
Display Colors :	16.7M (8-bit)
Response Time :	30/30 (Typ.)(Tr/Td)
Viewing Angle :	45/45/20/55 (Typ.)(CR≥10) (L/R/U/D)
Frequency :	60Hz
Lamp Type :	9S1P WLED
Signal Interface :	Parallel RGB (1 ch, 8-bit) , 40 pins
Input Voltage :	3.3/5.0V (Typ.)(VCC/AVDD)

SHARP LQ043T1DG03B Optical Features

Display Mode :	TN, Normally White, Transmissive
Brightness :	500 cd/m² (Typ.)
Contrast Ratio :	300 : 1 (Typ.) (Transmissive)
Display Color :	16.7M (8-bit)
Response Time :	30/30 (Typ.)(Tr/Td)
Viewing Angle :	45/45/20/55 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	6 o'clock
White color Chromaticity :	Wx:0.310; Wy:0.340
White Variation :	1.25/1.43 (Typ./Max.)(9 points)

Below are our other LCD panels stock for your easy reference:

Panel Model	Brand	Size	Resolution
LQ055T3SX04	SHARP	5.5"	1080×1920
LQ079L1SX06	SHARP	7.9"	1536×2048
LQ079L1SX04	SHARP	7.9"	1536×2048
LQ133M1JW08	SHARP	13.3"	1920×1080
LQ156D1JX02	SHARP	15.6"	3840×2160
LQ156Z1JW01	SHARP	15.6"	3200×1800

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

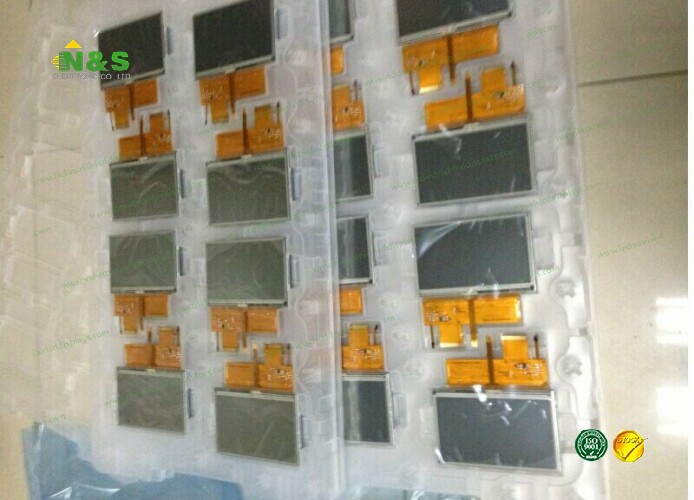

Details Pictures for Sharp LQ043T1DG03B LCD Screen

4.3 inch 105.5*67.2*5.35 mm Sharp LQ043T1DG03B LCD Screen
