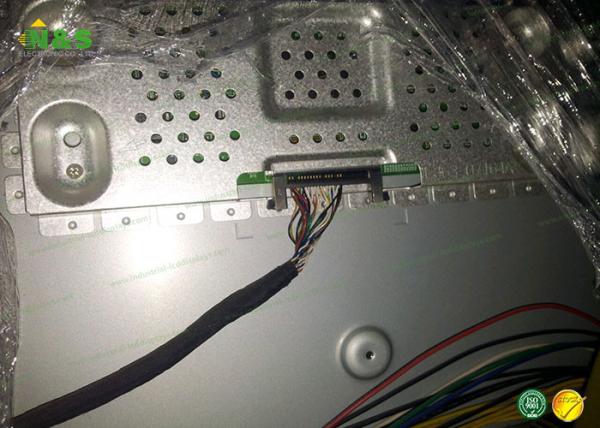

46 Inch LTI460HA03 FHD Industrial LCD Displays 1920*1080 Resolution
Our advantages
1. Your reply will be replied within 24 hours.
2. Good service whenever.
3. OEM service
4. No MOQ request.
5. Quick delivery: 1-3 working days
6. Each LCD panel will be tested pcs by pcs by our professional testing team.
7. One Year warranty for our LCD Screen Displays.
SAMSUNG LTI460HA03 General Features
Panel Brand : SAMSUNG
Panel Model : LTI460HA03
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 46 inch
Resolution : 1920(RGB)×1080 , FHD
Display Mode : S-PVA, Normally Black, Transmissive
Active Area : 1018.08×572.67 mm
Outline : 1047.4×600.6×66 mm , Videowall Seam 29.3 mm
Surface : Antiglare (Haze 44%), Hard coating (3H)
Brightness : 700 cd/m² (Typ.)
Contrast Ratio : 3500:1 (Typ.)
Display Colors : 16.7M (8-bit) , CIE1931 72%
Response Time : 10/6 (Typ.)(Tr/Td); 8 (Typ.)(G to G)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 16 pcs CCFL Embedded (Inverter)
Signal Interface : LVDS (2 ch, 8-bit) , 51 pins
Input Voltage : 12.0V (Typ.)
Below are our other LCD panels stock for your easy reference:
| Panel Model |
Brand |
Size |
Resolution |
| P101LCA-3P1 |
Innolux |
10.1" |
1920×1200 |
| V650HP2-PS5 |
Innolux |
65" |
1920×1080 |
| N156HGE-DB1 |
Innolux |
15.6" |
1920×1080 |
| V500DJ4-QS1 |
Innolux |
50" |
3840×2160 |
| V500DJ2-QS5 |
Innolux |
50" |
3840×2160 |
| V400DJ1-QS5 |
Innolux |
40" |
3840×2160 |
| P089DCZ-3A1 |
Innolux |
8.9" |
800×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Basic Information
Panel Model : LTI460HA03
Panel Type : a-Si TFT-LCD , Panel
Operating Temperature : 0 ~ 50 °C
Storage Temperature : -20 ~ 60 °C
| Panel Size : |
46 inch |
| Dot Resolution : |
1920(RGB)×1080 (FHD) |
| Pixel Configuration : |
RGB Vertical Stripe |
| Pixel Density : |
47 PPI |
| Aspect Ratio : |
16:9 (H:V) |
| Form Factor : |
Flat Rectangle Display |
| Dot Pitch : |
0.17675×0.53025 mm (H×V) |
| Pixel Pitch : |
0.53025×0.53025 mm (H×V) |
| Weight : |
16.0Kgs (Max.) |
| Surface : |
Antiglare (Haze 44%), Hard coating (3H) |
| Active Area : |
1018.08×572.67 mm (H×V) |
| Bezel Area : |
1024.4×578.6 mm (H×V) |
| Outline Dimension : |
1047.4×600.6 mm (H×V) |
| Outline Depth : |
41.8/66.0 (Typ./Max.) mm |
| Videowall Seam : |
29.3 mm (Active to Active) |
| Landscape or Portrait : |
Landscape / Portrait |
| Touch Panel : |
Without |
SAMSUNG LTI460HA03 Optical Features
Display Mode : S-PVA, Normally Black, Transmissive
Brightness : 700 cd/m² (Typ.)
Contrast Ratio : 3500 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit)
Color Gamut : 72% NTSC (CIE1931)
Response Time : 10/6 (Typ.)(Tr/Td); 8 (Typ.)(G to G)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.280; Wy:0.290
White Variation : 1.33 (Max.)(9 points)
SAMSUNG LTI460HA03 Backlight System
| Lamp Position : |
Direct light type |
| Lamp Type : |
CCFL |
| Lamp Amount : |
16 pcs |
| Lamp Shape : |
Straight |
| Lamp Life Time : |
50K(Min.) (Hours) |
| Lamp Voltage : |
1070/1120/1260V (Min./Typ./Max.) |
| Lamp Current : |
5.0/10.0/12.0mA (Min./Typ./Max.) |
| Interface Type : |
Connector |
Questions & Answers:
Q1: How can you trust us?
- We are a professional team for the LCD panel international trade already for 6 years. We own the more professional & more competitive sourcing line & agency for the LCD Screen panels.
Q2: When can I get the update price?
- Within 24 hours after we get your inquiry.
Q3: What is your product capacity per day?
- 500-1000 pcs/day. We test each pcs LCD panels before shipment.
Q4: What is the payment term?
- T/T, Western Union, MoneyGram, PayPal.
Q6: Do you offer after-sale service?
- Yes, we do. We have strict QC system to make sure within our guarantee period(12 months), please contact us ASAP if there is any question, we will try our best to resolve it.
Q7: Which brands' LCD panel replacements could we handle?
- Our LCD screen panels contained but not limited to AUO, Chimei, Hitachi, Innolux, KOE, Tianma, LG, NEC, Samsung, Sharp, Optrex and more brand for the industrial TFT LCD module.
Q8: Do you provide samples?
- Yes, we are glad to offer you our samples for checking quality. If you are interested in some of our products, please feel free to contact us for more details.
[Shipping & Delivery term]
1. We will ship all your order within 3 working days after receiving your payment. Otherwise, we will state it in the invoice in advance.
2. We can Ship via your shipping account (DHL / FEDEX / UPS / TNT or others) as your instruction. Or Ship via our shipping account (We have good relationship with DHL and FEDEX with very special freight).
