FG050722DSSWDG04 Industrial LCD Data Image 5.7 inch with 115.2×86.4 mm
Products Information:
| Panel Size : | 5.7 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 141 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.060×0.180 mm (H×V) |
| Pixel Pitch : | 0.180×0.180 mm (H×V) |
| Weight : | |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 115.2×86.4 mm (H×V) |
| Bezel Area : | 118.16×89.12 mm (H×V) |
| Outline Dimension : | 129×98 mm (H×V) |
| Outline Depth : | 11.0 (Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (4-wire Resistive) |
| Display Mode : | | TN, Normally White, Transmissive | |
| Brightness : | 720 cd/m² (Typ.) |
| Contrast Ratio : | 300 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 48% NTSC (CIE1931) |
| Response Time : | 15/35 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/60/40 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | |
| White Variation : | 1.25/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |
Our Advantages
- We can be your professional Agent & Sourcing Line for the Hard-to-find LCD screen replacements.
- 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
- Welcome small, medium & big quantity orders.
- 100% QC Inspection before Shipment.
- After-sales-service With 12 Months Warranty for our LCD panels.
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ED097TC1 | E Ink | 9.7" | 1200×825 |
| ET047TC1 | E Ink | 4.7" | 540×960 |
| ET040TC1 | E Ink | 4.0" | 480×720 |
| ED043WH1 | E Ink | 4.3" | 480×800 |
| ED043WC1 | E Ink | 4.3" | 480×800 |

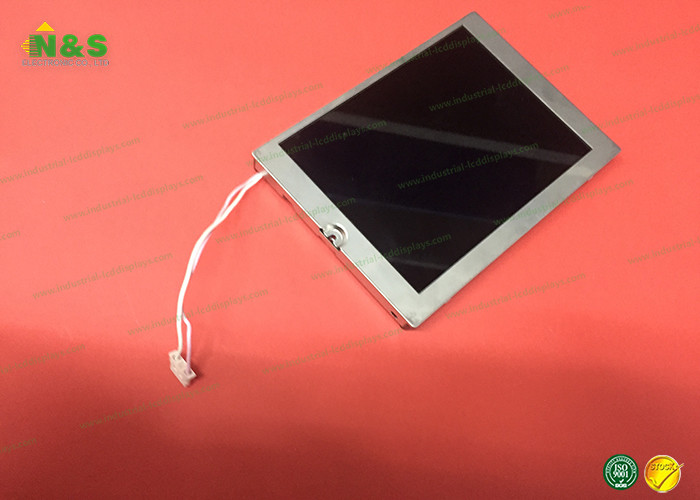

FG050722DSSWDG04 Picture
