LS032J7LX02 3.2 inch sharp professional displays LCM with 50.55×76.45 mm Outline

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

LS032J7LX02 3.2 inch sharp professional displays LCM with 50.55×76.45 mm Outline

Brand Name : SHARP

Model Number : LS032J7LX02

Certification : ISO9001

Place of Origin : KOREA

MOQ : 1

Payment Terms : Western Union, T/T, MoneyGram, T/T

Supply Ability : 500PCS/DAY

Delivery Time : 1-3WORK DAY

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Resolution : 320(RGB)×480 , HVGA

Panel Size : 3.2 inch

Panel Type : CG-Silicon , LCM

Active Area : 44.64×66.96 mm

Outline : 50.55×76.45 mm

Surface : Hard coating (3H)

Contact Now

LS032J7LX02 Sharp LCD Panel 3.2 inch LCM with 50.55×76.45 mm Outline

LS032J7LX02 Specification

Panel Size :3.2 inch
Dot Resolution :320(RGB)×480 (HVGA)
Pixel Configuration :RGB Vertical Stripe
Pixel Density :182 PPI
Aspect Ratio :2:3 (H:V)
Form Factor :Flat Rectangle Display
Dot Pitch :0.0465×0.1395 mm (H×V)
Pixel Pitch :0.1395×0.1395 mm (H×V)
Weight :16g (Typ.)
Surface :
Hard coating (3H)
Active Area :44.64×66.96 mm (H×V)
Outline Dimension :50.55×76.45 mm (H×V)
Outline Depth :1.95 (Typ.) mm
Landscape or Portrait :Portrait type
Touch Panel :Without
Display Mode :
ASV, Normally Black, Transflective
Brightness :300 cd/m² (Typ.)
Contrast Ratio :500 : 1 (Typ.) (Transmissive)
Contrast Ratio :10:1 (Typ.) (Reflective)
Display Color :262K (6-bit)
Color Gamut :50% NTSC (CIE1931)
Response Time :35/35 (Typ.)(Tr/Td)
Viewing Angle :80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :Symmetry
White color Chromaticity :Wx:0.310; Wy:0.330
Reflectance Ratio :3% (Typ.)
Sunlight Readable :Y


Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!

Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.

Below are our other LCD panels stock for your easy reference:

Panel ModelBrandSizeResolution
LK315T3HC1KSHARP31.5"1366×768
LQ055T3SX04SHARP5.5"1080×1920
LQ079L1SX06SHARP7.9"1536×2048
LQ079L1SX04SHARP7.9"1536×2048
LQ133M1JW08SHARP13.3"1920×1080
LQ156D1JX02SHARP15.6"3840×2160
LQ156Z1JW01SHARP15.6"3200×1800

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

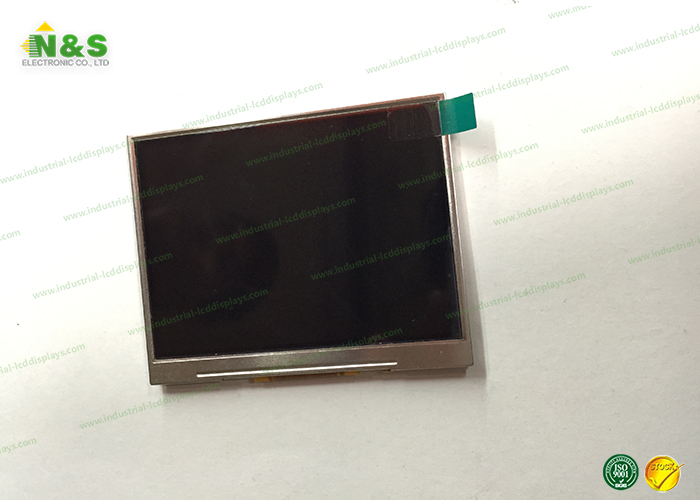

LS032J7LX02 Picture


LS032J7LX02 3.2 inch sharp professional displays LCM with 50.55×76.45 mm Outline
