LS040B3SX01 Sharp LCD Panel , Normally Black 4 inch lcd screen 55.68×83.52 mm

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

LS040B3SX01 Sharp LCD Panel , Normally Black 4 inch lcd screen 55.68×83.52 mm

Brand Name : SHARP

Model Number : LS040B3SX01

Certification : ISO9001

Place of Origin : KOREA

MOQ : 1

Payment Terms : Western Union, T/T, MoneyGram, T/T

Supply Ability : 500PCS/DAY

Delivery Time : 1-3WORK DAY

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Resolution : 640(RGB)×960 , DVGA

Panel Size : 4.0 inch

Panel Type : CG-Silicon , LCM

Active Area : 55.68×83.52 mm

Contrast Ratio : 800:1 (Typ.)

Display Colors : 16.7M (8-bit) , CIE1931 72%

Contact Now

LS040B3SX01 Sharp LCD Panel 4.0 inch Normally Black with 55.68×83.52 mm

LS040B3SX01 Detail

Panel Size :4.0 inch
Dot Resolution :640(RGB)×960 (DVGA)
Pixel Configuration :RGB Vertical Stripe
Pixel Density :291 PPI
Aspect Ratio :2:3 (H:V)
Form Factor :Flat Rectangle Display
Dot Pitch :0.029×0.087 mm (H×V)
Pixel Pitch :0.087×0.087 mm (H×V)
Weight :19g
Surface :
Clear
Active Area :55.68×83.52 mm (H×V)
Outline Dimension :59.8×91.85 mm (H×V)
Outline Depth :1.6±0.2 mm
Landscape or Portrait :
Portrait type
Touch Panel :Without
Display Mode :Normally Black, Transmissive
Brightness :450 cd/m² (Typ.)
Contrast Ratio :800 : 1 (Typ.) (Transmissive)
Display Color :16.7M (8-bit)
Color Gamut :72% NTSC (CIE1931)
Response Time :11/24 (Typ.)(Tr/Td)
Viewing Angle :80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :Symmetry
White color Chromaticity :
Wx:0.310; Wy:0.327
White Variation :1.25/1.43 (Typ./Max.)(9 points)
Sunlight Readable :N


Our Promise for our LCD Panels:
You will get reply within 24 Hours and:
ΠYear warranty
ΠDay shipping
‹ Return

Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel ModelBrandSizeResolution
LQ055T3SX04SHARP5.5"1080×1920
LQ079L1SX06SHARP7.9"1536×2048
LQ079L1SX04SHARP7.9"1536×2048
LQ133M1JW08SHARP13.3"1920×1080
LQ156D1JX02SHARP15.6"3840×2160
LQ156Z1JW01SHARP15.6"3200×1800
LQ133T1JW14BSHARP13.3"2560×1440
LQ047K3SX04SHARP4.7"720×1280
LS024Q8UC92SHARP2.4"240×320
LK235D3HA0SSHARP23.6"1920×1080
LS055D1SX04SHARP5.5"2160×3840


Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed

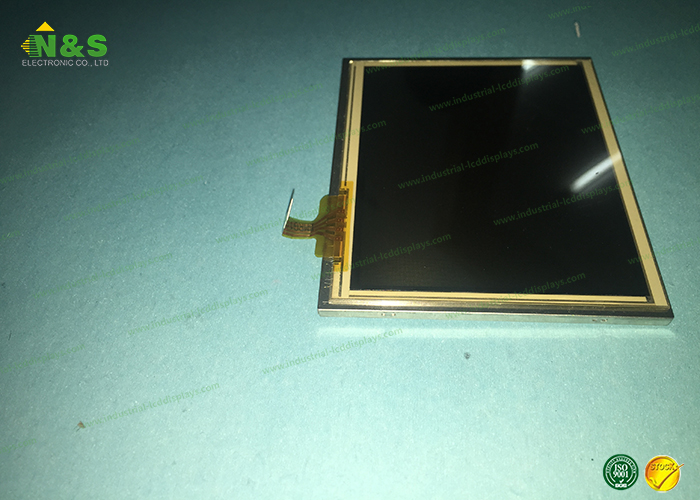

LS040B3SX01 Picture

LS040B3SX01 Sharp LCD Panel , Normally Black 4 inch lcd screen 55.68×83.52 mm
