5.6" TFT LCD Display Screen LQ056A3AG01 LCD Panel For Car GPS/DVD Navigation

Name: 56quot TFT LCD Display Screen LQ056A3AG01 LCD Panel For Car GPSDVD Navigation
Brand: SHARP LCD Panel
Price: 1 USD

Wholesale 5.6" TFT LCD Display Screen LQ056A3AG01 LCD Panel For Car GPS/DVD Navigation from china suppliers

Brand Name : SHARP LCD Panel

Model Number : LQ056A3AG01

Certification : CE

Place of Origin : Japan

MOQ : 1

Price : usd

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000

Delivery Time : 24hours

Packaging Details : standard packing

Model : LQ056A3AG01

Size : 5.6"

Brightness : 250 cd/m² (Typ.)

Response Time : 15/20 (Typ.)(Tr/Td)

Contact Now

5.6" TFT LCD Display Screen LQ056A3AG01 LCD Panel For Car GPS/DVD Navigation

Introductions:

We still have other models and more in stock:
Sizes: 7.0, 8.9", 9.7", 10.0", 10.1", 10.2", 10.4", 11.1", 11.6", 12.1", 12.5", 13.1", 13.3", 14.0", 14.1", 14.5", 15.0" 15.4", 15.6", 16.0", 16.4", 17.0", 17.1", 17.3", 18.4"
Resolutions: XGA, WXGA, WXGA HD, , WXGA+, WXGA++, WSVGA, WUXGA, WUXGA+, WUXGA++, Full-HD
Backlight technologies: LED, SLIM LED, 1 CCFL, 2 CCFL

Sample Charge:
1. Samples charge: According to the model. Pls contact us to get details.
2. Samples time: 3 day for stock models

Panel Brand :	SHARP
Panel Model :	LQ056A3AG01
Panel Type :	a-Si TFT-LCD , LCM
Panel Size :	5.6"
Resolution :	320(RGB)×234
Display Mode :	TN, Normally White, Transmissive
Active Area :	114.2×83.5 mm
Outline :	140×102.7 mm
Surface :
Brightness :	250 cd/m² (Typ.)
Contrast Ratio :	60:1 (Min.)
Display Colors :	Full color
Response Time :	15/20 (Typ.)(Tr/Td)
Viewing Angle :	65/65/40/65 (Typ.)(CR≥5) (L/R/U/D)
Lamp Type :	1 pcs CCFL Embedded (Inverter)
Signal Interface :	Analog RGB + Composite Video (NTSC/PAL) , 24 pins
Input Voltage :	12.0V (Typ.)

SHARP LQ056A3AG01 Basic Information

Panel Brand :
Panel Model :	LQ056A3AG01
Panel Type :	a-Si TFT-LCD , LCM
Operating Temperature :	0 ~ 65 °C
Storage Temperature :	-25 ~ 70 °C
RoHS :

Product Tags:

sharp lcd display panels

sharp lcd flat screen

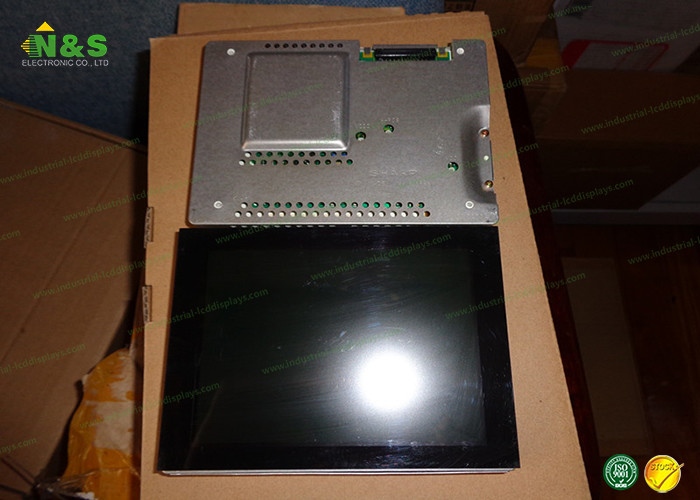

5.6" TFT LCD Display Screen LQ056A3AG01 LCD Panel For Car GPS/DVD Navigation Images
