19.0 inch M190EN04 V4 AUO LCD Panel for all Desktop Monitor panel
M190EN04 V4 Information
| Panel Brand : | AUO |
| Panel Model : | M190EN04 V4 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 19.0 inch |
| Resolution : | 1280(RGB)×1024 , SXGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 376.32×301.056 mm |
| Outline : | 396×324×18 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 450:1 (Typ.) |
| Display Colors : | 16.2M (6-bit + FRC) , CIE1931 72% |
| Response Time : | 3.6/8.4 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/70/65 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 4 pcs CCFL Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
Quality Control:
- Visual Inspection
Make sure No damage, No Scratches, No dusty, No light leakage.
- Function Inspection
Make sure all functions are 100% tested ok
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service
| Panel Size : | 19.0 inch |
| Dot Resolution : | 1280(RGB)×1024 (SXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 86 PPI |
| Aspect Ratio : | 5:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.098×0.294 mm (H×V) |
| Pixel Pitch : | 0.294×0.294 mm (H×V) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 376.32×301.056 mm (H×V) |
| Bezel Area : | 380.3×305.1 mm (H×V) |
| Outline Dimension : | 396×324 mm (H×V) |
| Outline Depth : | 14.33/18.0 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (8-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk

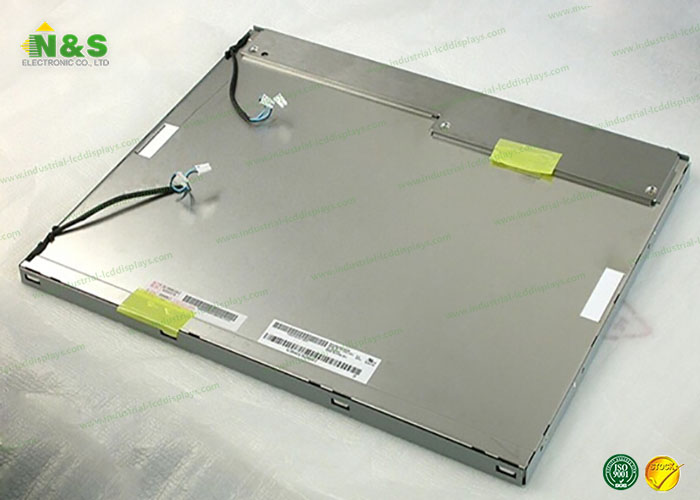

M190EN04 V4 AUO LCD Panel Picture
