Home > Sharp LCD Panel >

503.808×503.808 mm LQ281L1LW12 SHARP 28.1 inch Sharp LCD Panel LCM 2048×2048 225 450:1 16.7M CCFL LVDS

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

503.808×503.808 mm LQ281L1LW12 SHARP 28.1 inch Sharp LCD Panel LCM 2048×2048 225 450:1 16.7M CCFL LVDS

Brand Name : SHARP

Model Number : LQ281L1LW12

Certification : iso9001

Place of Origin : KOREA

MOQ : 1

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500PCS/DAY

Delivery Time : 1-3WORK DAY

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Type : a-Si TFT-LCD , LCM

Panel Size : 28.1 inch

Resolution : 2048(RGB)×2048

Display Mode : Normally Black, Transmissive

Contact Now

503.808×503.808 mm LQ281L1LW12 SHARP 28.1 inch Sharp LCD Panel LCM 2048×2048 225 450:1 16.7M CCFL LVDS

LQ281L1LW12 Detail

Panel Size :28.1 inch
Dot Resolution :2048(RGB)X2048
Pixel Configuration :RGB Vertical Stripe
Pixel Density :103 PPI
Aspect Ratio :1:1 (H:V)
Form Factor :Flat Rectangle Display
Dot Pitch :0.082X0.246 mm (HXV)
Pixel Pitch :0.246X0.246 mm (HXV)
Weight :15.0Kgs (Typ.)
Surface :Antiglare, Hard coating (2H)
Active Area :503.808X503.808 mm (HV)
Bezel Area :509.0X509.0 mm (HXV)
Outline Dimension :594X594 mm (HXV)
Outline Depth :60.0 (Typ.) mm
Holes & Brackets :Face mounting holes (4-5.4)
Landscape or Portrait :Landscape type
Touch Panel :Without
Display Mode :Normally Black, Transmissive
Brightness :225 cd/m² (Typ.)
Contrast Ratio :450 : 1 (Typ.) (Transmissive)
Display Color :16.7M (8-bit)
Response Time :5/20 (Typ.)(Tr/Td)
Viewing Angle :85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :Symmetry
White color Chromaticity :Wx:0.313; Wy:0.329
White Variation :1.25 (Max.)(5 points)
Sunlight Readable :N


Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel ModelBrandSizeResolution
LK315T3HC1KSHARP31.5"1366×768
LQ055T3SX04SHARP5.5"1080×1920
LQ079L1SX06SHARP7.9"1536×2048
LQ079L1SX04SHARP7.9"1536×2048
LQ133M1JW08SHARP13.3"1920×1080
LQ156D1JX02SHARP15.6"3840×2160


Our Company Strength in LCD Screen Sourcing:

  1. ISO9001 certificated, Factory Direct Supplied
  2. Competitive Price and Short Lead-time
  3. Professional Team with Rich Experiences in LCD screen international trade communication.
  4. Small MOQ Support & Fast Response to Customers
  5. Long Product Life Time
  6. 1 Year warranty for our LCD screen replacements.

FAQ:
1. Q: Are you a manufacturer or trading company?
A: We are a trading company who has been specializing in marketing LCD display for 6 years.
2. Q:What’s the quality of your products?
A: In visual inspection, we will make sure no damage, no scratches ,no dusty ,no flaws. And in function inspection, we make sure all functions are 100% tested ok.
3. Q: What is your after-sale service?
A: We offer 100% guarantee on our product. We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
4. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
5. Q: When will you make the delivery?
A: We can make the delivery for the LCD panels you want within 1-3 working days after receipt of payment.
6. Q: what brand of screen could we handle?
A: We can handle LCD panels for the below brand: Samsung, LG, AUO, Sharp, NEC, Hitachi industrial screen and more.

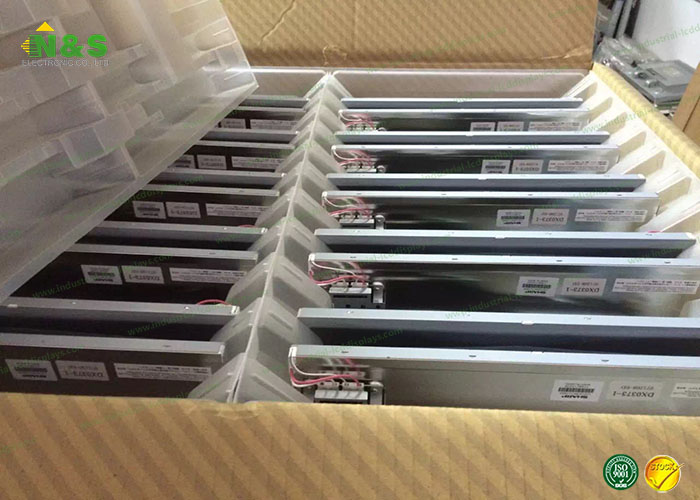

LQ281L1LW12 Picture

503.808×503.808 mm LQ281L1LW12 SHARP 28.1 inch Sharp LCD Panel LCM 2048×2048 225 450:1 16.7M CCFL LVDS
