Innolux 5.0 inch TN LCM 480×272 300nits WLED TTL 40pins

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

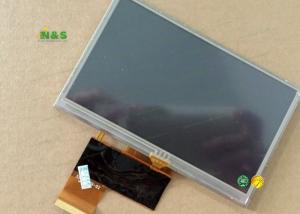

Innolux 5.0 inch TN LCM 480×272 300nits WLED TTL 40pins

  • 1
  • 2
  • 3

Brand Name : Innolux

Model Number : AT050TN33

Price : 9999

Certification : ISO9001

Place of Origin : Japan

MOQ : 1

Payment Terms : T/T, Western Union,paypal

Supply Ability : 100 PCS / DAY

Delivery Time : 2-3 working days after payment confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Series : AT050TN33

Keywords Desc. : Innolux 5.0" TN LCM 480×272 300nits WLED TTL 40pins

Product Class : Graphic LCD Display

Product Tags : Color TFT-LCD,Resistive Touch LCD,Transmissive LCD

Application : MP4 PMP,Pocket TV,Portable Navigation

Panel Type : a-Si TFT-LCD

Panel Composition : LCM

Panel Size : 5.0"

Resolution : 480×272

Aspect Ratio : 16:9 (W:H)

Form Factor : Flat Rectangle Display

Orientation : Landscape type

Active Area : 110.88 (W) × 62.832 (H) mm (A.A)

Viewing Area : 113.90 (W) × 65.85 (H) mm (V.A)

Outline Dimension : 120.7 (W) × 75.8 (H) mm

Max. Depth : 4.45 mm

Weight : 83.0g (Typ.)

LC Family : TN

Polarizer : Transmissive

Brightness : 300 (Typ.)

Contact Now

Innolux 5.0 inch TN LCM 480×272 300nits WLED TTL 40pins

Characteristic

Panel Brand : INNOLUX
Panel Model : AT050TN33
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 5.0 inch
Resolution : 480(RGB)×272 , WQVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 110.88×62.832 mm
Outline : 120.7×75.8×4.45 mm
Surface : Antiglare
Brightness : 300 cd/m2 (Typ.)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 16.7M (8-bit) , CIE1931 50%
Response Time : 10/15 (Typ.)(Tr/Td)
Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 6S2P WLED
Signal Interface : Parallel RGB (1 ch, 8-bit) , 40 pins
Input Voltage : 3.3V (Typ.)(VCC)

INNOLUX AT050TN33 Mechanical Features

Panel Size : 5.0 inch
Dot Resolution : 480(RGB)×272 (WQVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 109 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.077×0.231 mm (H×V)
Pixel Pitch : 0.231×0.231 mm (H×V)
Weight : 83.0g (Typ.)
Surface : Antiglare
Active Area : 110.88×62.832 mm (H×V)
Bezel Area : 113.90×65.85 mm (H×V)
Outline Dimension : 120.7×75.8 mm (H×V)
Outline Depth : 4.25±0.2 mm
Landscape or Portrait : Landscape type
Touch Panel : Embeded (4-wire Resistive, Film / Glass)

Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.

FAQ

1. Q: Where can I get the price?

A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.

2. Q: How can I get a sample to check your quality?

A: After price confirmation, you can require for samples to check our quality.

3. Q: What about the lead time for mass production?

A: It depends on your order quantity and the season you place the order.

4. Q: What are your terms of payment?

A: We accept T/T, Western Union, MoneyGram, PayPal.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
AE060RN01 Innolux 6.0" 800×600
F050A12-601 Innolux 5.0" 480×854
85C02502-Y21 Innolux 2.5" 320×240
V260B2-P03 Rev.C2 Innolux 26.0" 1366×768
G070YG1-P01 Innolux 7.0" 800×480
F03215-01Z Innolux 3.2" 360×480
F0352A-01U Innolux 3.5" 320×480
F07020-01D Innolux 7.0" 480×234
HB101NA-01C Innolux 10.1" 1280×800

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
