SHARP LQ150X1LW73 15.0 inch VA LCM 1024×768 350nits CCFL LVDS 20pins

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

SHARP LQ150X1LW73 15.0 inch VA LCM 1024×768 350nits CCFL LVDS 20pins

Brand Name : SHARP

Model Number : LQ150X1LW73

Certification : ISO9001

Place of Origin : Japan

MOQ : 1

Payment Terms : T/T, Western Union,paypal

Supply Ability : 100 PCS / DAY

Delivery Time : 2-3 working days after payment confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Series : LQ150X1LW

Keywords Desc. : SHARP 15.0" VA LCM 1024×768 350nits CCFL LVDS 20pins

Product Class : Graphic LCD Display

Product Tags : Color TFT-LCD,Transmissive LCD

Application : Industrial Application

Panel Type : a-Si TFT-LCD

Panel Composition : LCM

Panel Size : 15.0"

Resolution : 1024×768

Aspect Ratio : 4:3 (W:H)

Form Factor : Flat Rectangle Display

Orientation : Landscape type

Active Area : 304.1 (W) × 228.1 (H) mm (A.A)

Viewing Area : 307.2 (W) × 231.1 (H) mm (V.A)

Outline Dimension : 331.6 (W) × 254.76 (H) mm

Max. Depth : 13 mm

Weight : 1.45Kgs (Max.)

LC Family : VA Family

Polarizer : Transmissive

Brightness : 350 (Typ.)

Contact Now

SHARP LQ150X1LW73 15.0 inch VA LCM 1024×768 350nits CCFL LVDS 20pins

LQ150X1LW73 Main Parameters

Panel Brand : SHARP
Panel Model : LQ150X1LW73
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 15.0 inch
Resolution : 1024(RGB)×768 , XGA
Display Mode : ASV, Normally Black, Transmissive
Active Area : 304.1×228.1 mm
Outline : 331.6×254.76×13 mm
Surface : Antiglare (Haze 42%), Hard coating (3H), Antireflection
Brightness : 350 cd/m2 (Typ.)
Contrast Ratio : 600:1 (Typ.)
Display Colors : 16.2M (6-bit + FRC)
Response Time : 35 (Typ.)(Tr+Td)
Viewing Angle : 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 4 pcs CCFL
Signal Interface : LVDS (1 ch, 8-bit) , 20 pins
Input Voltage : 3.3V (Typ.)


What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.

FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.

SHARP LQ150X1LW73 Mechanical Features

Panel Size : 15.0 inch
Dot Resolution : 1024(RGB)×768 (XGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 85 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.099×0.297 mm (H×V)
Pixel Pitch : 0.297×0.297 mm (H×V)
Weight : 1.45Kgs (Max.)
Surface : Antiglare (Haze 42%), Hard coating (3H), Antireflection
Active Area : 304.1×228.1 mm (H×V)
Bezel Area : 307.2×231.1 mm (H×V)
Outline Dimension : 331.6×254.76 mm (H×V)
Outline Depth : 12.5±0.5 mm
Holes & Brackets : Face mounting holes (2-Φ3.2, 2-R2) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without


Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
LQ079L1SX06 SHARP 7.9" 1536×2048
LQ079L1SX04 SHARP 7.9" 1536×2048
LQ133M1JW08 SHARP 13.3" 1920×1080
LQ156D1JX02 SHARP 15.6" 3840×2160
LQ156Z1JW01 SHARP 15.6" 3200×1800
LQ133T1JW14B SHARP 13.3" 2560×1440
LQ047K3SX04 SHARP 4.7" 720×1280

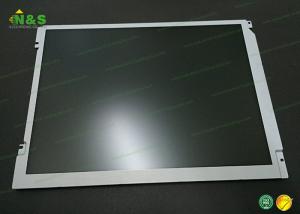

LQ150X1LW73 Picture

SHARP LQ150X1LW73 15.0 inch VA LCM 1024×768 350nits CCFL LVDS 20pins
