5.7 inch Antiglare PD057VU7 PVI LCD Displays with 115.2×86.4 mm

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

5.7 inch Antiglare PD057VU7 PVI LCD Displays with 115.2×86.4 mm

Brand Name : PVI

Model Number : PD057VU7

Certification : ISO9001

Place of Origin : Japan

MOQ : 1

Payment Terms : T/T, Western Union,paypal

Supply Ability : 100 PCS / DAY

Delivery Time : 2-3 working days after payment confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Size : 5.7 inch

Resolution : 320(RGB)×240 , QVGA

Display Mode : TN, Normally White, Transmissive

Active Area : 115.2×86.4 mm

Outline : 144×104.6×14.95 mm

Surface : Antiglare

Contact Now

5.7 inch Antiglare PD057VU7 PVI LCD Displays with 115.2×86.4 mm

PD057VU7 Main Parameters

Panel Brand :PVI
Panel Model :PD057VU7
Panel Type :a-Si TFT-LCD , LCM
Panel Size :5.7 inch
Resolution :320(RGB)×240 , QVGA
Display Mode :TN, Normally White, Transmissive
Active Area :115.2×86.4 mm
Outline :144×104.6×14.95 mm
Surface :Antiglare
Brightness :600 cd/m2 (Typ.)
Contrast Ratio :600:1 (Typ.)
Display Colors :262K (6-bit)
Response Time :15/25 (Typ.)(Tr/Td)
Viewing Angle :60/60/40/50 (Typ.)(CR≥10) (L/R/U/D)
Frequency :60Hz
Lamp Type :3S12P WLED
Signal Interface :TTL (1 ch, 6-bit) , 33 pins
Input Voltage :3.3V (Typ.)(VCC)

PVI PD057VU7 Mechanical Features

Panel Size :5.7 inch
Dot Resolution :320(RGB)×240 (QVGA)
Pixel Configuration :RGB Vertical Stripe
Pixel Density :70 PPI
Aspect Ratio :4:3 (H:V)
Form Factor :Flat Rectangle Display
Dot Pitch :0.120×0.360 mm (H×V)
Pixel Pitch :0.360×0.360 mm (H×V)
Weight :244±10g
Surface :Antiglare
Active Area :115.2×86.4 mm (H×V)
Bezel Area :117.2×88.4 mm (H×V)
Outline Dimension :144×104.6 mm (H×V)
Outline Depth :14.45±0.5 mm
Holes & Brackets :Rear mounting holes (4-Ф2.6)
Landscape or Portrait :Landscape type
Touch Panel :Embeded (4-wire Resistive)


FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.

Below are our other LCD panels stock for your easy reference:

Panel ModelBrandSizeResolution
EK014BS012PDI1.44"128×96
EK014BS011PDI1.44"128×96
EG020BS012PDI2.0"200×96
EG020BS011PDI2.0"200×96
EG020AS013PDI2.0"200×96
EG020AS012PDI2.0"200×96

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

Quality Control:

  1. Visual Inspection

Make sure No damage, No Scratches, No dusty, No light leakage.

  1. Function Inspection

Make sure all functions are 100% tested ok

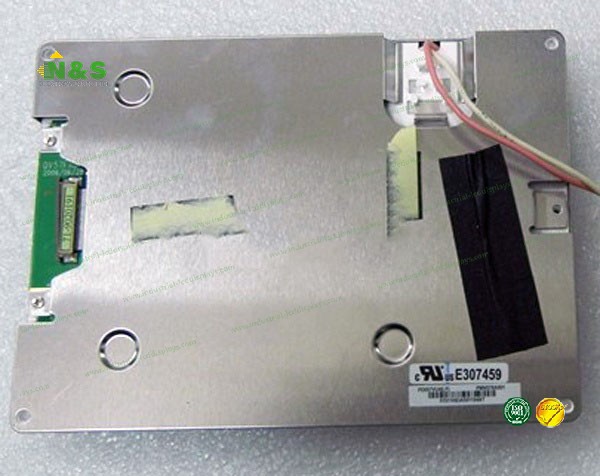

PD057VU7 Picture

5.7 inch Antiglare PD057VU7 PVI LCD Displays with 115.2×86.4 mm
