Normally White PD050OX5 5.0 inch PVI LCD Displays with 111.5×110×7.5 mm Outline

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

Normally White PD050OX5 5.0 inch PVI LCD Displays with 111.5×110×7.5 mm Outline

  • 1
  • 2
  • 3

Brand Name : PVI

Model Number : PD050OX5

Certification : ISO9001

Place of Origin : Japan

MOQ : 1

Payment Terms : T/T, Western Union,paypal

Supply Ability : 100 PCS / DAY

Delivery Time : 2-3 working days after payment confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Display Mode : TN, Normally White, Transmissive

Active Area : 90×90 mm

Outline : 111.5×110×7.5 mm

Surface : Antiglare

Contact Now

Normally White PD050OX5 5.0 inch PVI LCD Displays with 111.5×110×7.5 mm Outline

PD050OX5 Detailed Product Description

Panel Brand :PVI
Panel Model :PD050OX5
Panel Type :a-Si TFT-LCD , LCM
Panel Size :5.0 inch
Resolution :480(RGB)×480
Display Mode :TN, Normally White, Transmissive
Active Area :90×90 mm
Outline :111.5×110×7.5 mm
Surface :Antiglare
Brightness :800 cd/m2 (Typ.)
Contrast Ratio :400:1 (Typ.)
Display Colors :262K (6-bit)
Response Time :15/25 (Typ.)(Tr/Td)
Viewing Angle :60/60/40/55 (Typ.)(CR≥10) (L/R/U/D)
Frequency :60Hz
Lamp Type :1 pcs CCFL
Signal Interface :TTL (1 ch, 6-bit) , 60 pins
Input Voltage :3.3/3.3/9.7/17.0V (Typ.)(VDD1/VCC/VDD2/VGG)

PVI PD050OX5 Mechanical Features

Panel Size :5.0 inch
Dot Resolution :480(RGB)×480
Pixel Configuration :RGB Vertical Stripe
Pixel Density :135 PPI
Aspect Ratio :1:1 (H:V)
Form Factor :Flat Rectangle Display
Dot Pitch :0.0625×0.1875 mm (H×V)
Pixel Pitch :0.1875×0.1875 mm (H×V)
Weight :144.0±10g
Surface :Antiglare
Active Area :90×90 mm (H×V)
Bezel Area :93.2×93.2 mm (H×V)
Outline Dimension :111.5×110 mm (H×V)
Outline Depth :7.2±0.3 mm
Holes & Brackets :Side mounting holes (2-M2) on right bezel
Landscape or Portrait :Landscape type
Touch Panel :Without


What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.

FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.

Below are our other LCD panels stock for your easy reference:

Panel ModelBrandSizeResolution
E1190CS021PDI1.9"144×128
E1260CS021PDI2.6"232×128
E1271CS021PDI2.7"264×176
E1144CS021PDI1.44"128×96

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

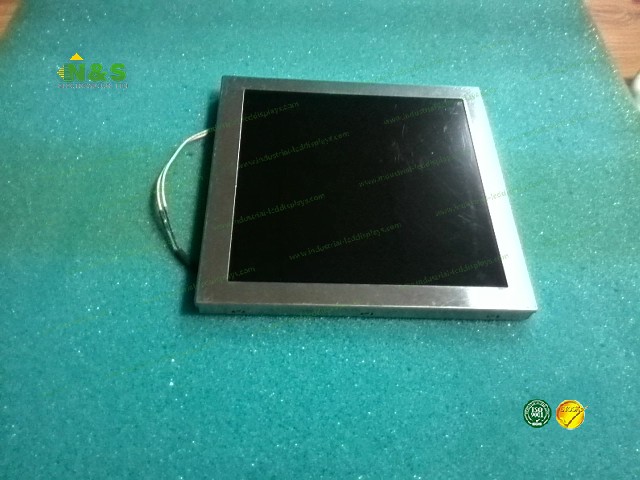

PD050OX5 Picture

Normally White PD050OX5 5.0 inch PVI LCD Displays with 111.5×110×7.5 mm Outline

Normally White PD050OX5 5.0 inch PVI LCD Displays with 111.5×110×7.5 mm Outline
