NL2432HC22-23B NEC a-Si TFT-LCD ,3.5 inch, 240×320 for Industrial Application
NL2432HC22-23B Basic Information
| Panel Model | NL2432HC22-23B |
| Panel Brand | NEC |
| Descrition | a-Si TFT-LCD ,3.5 inch, 240×320 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -10 ~ 55 °C |
| Storage Temperature | -20 ~ 70 °C |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
NL2432HC22-23B Mechanical Features
| Dot Resolution | 240(RGB)×320 (QVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 113 PPI |
| Aspect Ratio | 3:4 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0745×0.2235 mm (H×V) |
| Pixel Pitch | 0.2235×0.2235 mm (H×V) |
| Active Area | 53.64×71.52 mm (H×V) |
| Outline Dimension | 64×85 mm (H×V) |
| Outline Depth | 4.13 mm |
| Landscape or Portrait | Portrait type |
| Touch Panel | Without |
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
3Quickly delivery:
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
4long-term partner:
* Products are sold to more than 20 countries.
5Super After-Sale service:
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.
NL2432HC22-23B Optical Features
| Display Mode | TN, Normally White, Transflective |
| Brightness | 90 cd/m² (Typ.) |
| Contrast Ratio | 10:1 (Typ.) (Reflective) |
| Reflectance Ratio | 7% (Typ.) |
| Sunlight Readable | Y |
The reasons you choose us
1).Mor e competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the h
ard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
NL2432HC22-23B Backlight System
| Lamp Position | Edge light type |
| Lamp Type | WLED |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| NL160120BC27-10 | NLT | 21.3" | 1600×1200 |
| NL160120BC27-02 | NLT | 21.3" | 1600×1200 |
| NL160120AM27-06A | NLT | 21.3" | 1600×1200 |
| NL160120AM27-06 | NLT | 21.3" | 1600×1200 |
| NL160120AC27-22B | NLT | 21.3" | 1600×1200 |
| NL160120AC27-05 | NLT | 21.3" | 1600×1200 |
| NL160120AC27-01A | NLT | 21.3" | 1600×1200 |
| NL160120AC27-01 | NLT | 21.3" | 1600×1200 |
We also have other industrial LCD panels, pls contact to us for the further information

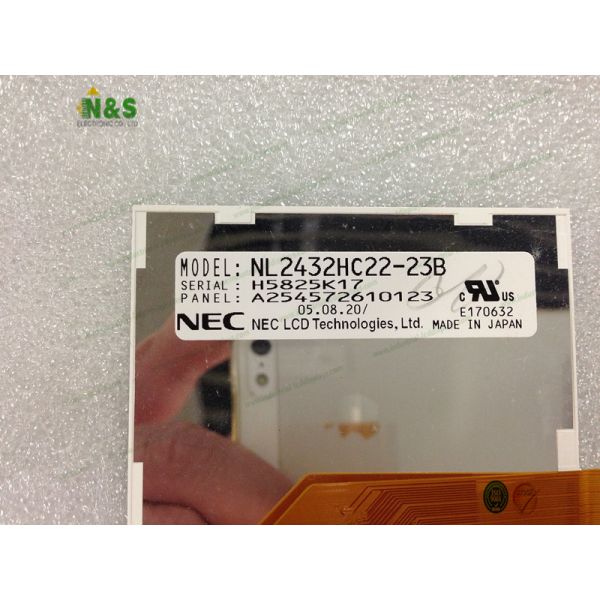

NL2432HC22-23B pictures
