New and original LQ030B7UB02 SHARP a-Si TFT-LCD ,3.0 inch, 240×400 for 60Hz
LQ030B7UB02 Basic Information
| Panel Model | LQ030B7UB02 |
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,3.0 inch, 240×400 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -10 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Remarks | Backlight: Serial 1LED 3LED 4LED Optional; AD-TFT (Advanced TFT) |
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
LQ030B7UB02 Mechanical Features
| Dot Resolution | 240(RGB)×400 (WQVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 156 PPI |
| Aspect Ratio | 3:5 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.054×0.162 mm (H×V) |
| Pixel Pitch | 0.162×0.162 mm (H×V) |
| Weight | 24g (Typ.) |
| Surface | Hard coating (3H), Antireflection |
| Active Area | 38.88×64.8 mm (H×V) |
| Outline Dimension | 47.28×76.4 mm (H×V) |
| Outline Depth | 3.25±0.2 mm |
| Landscape or Portrait | Portrait type |
| Touch Panel | Without |
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.
LQ030B7UB02 Optical Features
| Display Mode | TN, Normally White, Transflective |
| Brightness | 150 cd/m² (Typ.) |
| Contrast Ratio | 15:1 (Typ.) (Reflective) |
| Display Color | 65K/262K () |
| Response Time | 30/30 (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/65/50 (Typ.)(CR≥2) (L/R/U/D) |
| Viewing Direction | 12 o'clock |
| White color Chromaticity | Wx:0.310; Wy:0.340 |
| Reflectance Ratio | 7/10% (Min./Typ.) |
| Sunlight Readable | Y |
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
LQ030B7UB02 Electronics Feature
| Reverse Scan | Yes (U/D, L/R) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM057QC1T03 | SHARP | 5.7" | 320×240 |
| LM057QC1T02 | SHARP | 5.7" | 320×240 |
| LM057QC1T01R | SHARP | 5.7" | 320×240 |
| LM100SS1T523 | SHARP | 10.0" | 800×600 |
| LM100SS1T52 | SHARP | 10.0" | 800×600 |
| LM121SS1T709 | SHARP | 12.1" | 800×600 |
| LM121SS1T509 | SHARP | 12.1" | 800×600 |
| LM121SS1T53 | SHARP | 12.1" | 800×600 |
We also have other industrial LCD panels, pls contact to us for the further information

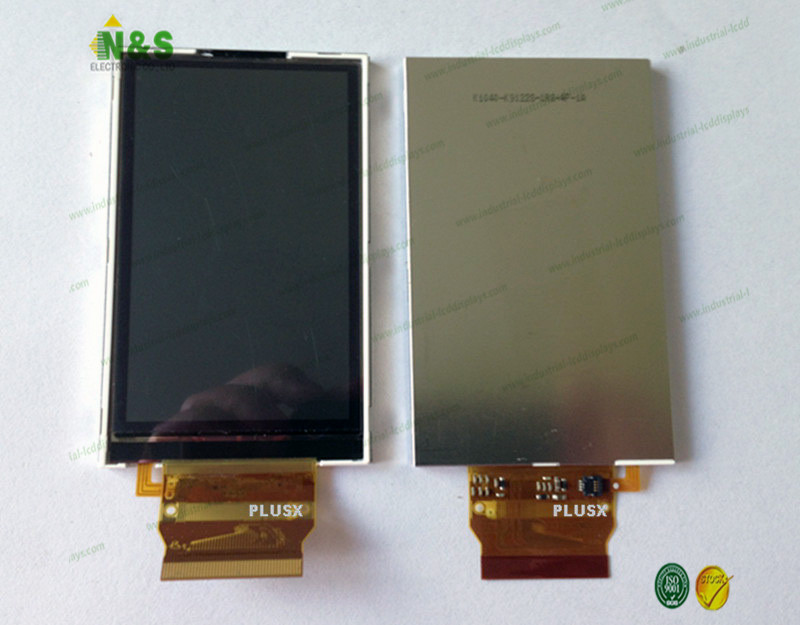

LQ030B7UB02 pictures
